Flow Meter |
|
|
|
| |
MS Medical Flow Meter is used to adjust and measure the wanted flow of gas for patient. |
|
|
|
The flow meter should be connected to a source of pressured gas on the wall using direct probe or rail system. |
The oxygen flow meter must be fitted with humidifier or an outlet tubing apple combined with an Oxygen mask or Cannula. |
- Chromium-plated brass body (high shock resistant) |
- Polycarbonate reading scale and scale caver |
- Flow rate available: 0-15L/min |
- Filter at the scale inlet: patient and flow meter protection |
- Knob: Easy to maintain, offers optimum adjustment quality |
- Available with French, BS and DIN standard |
- Identification ring allows immediate identification and also indicates the name of the gas |
|

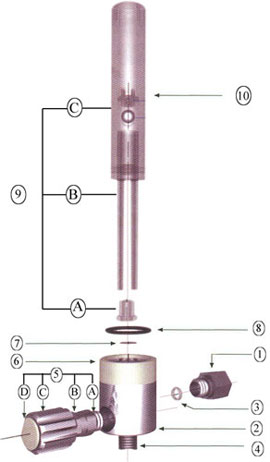

Flow Meter - Technical View: |
|
1 |
Inlet connector |
2 |
Body |
3 |
Inlet gasket for flow meter |
4 |
Humidifier or nipple connector |
5 |
knob
5-a gasket for the end of the knob
5-b outer gasket of the knob
5-c knob hand wheel
5-d color disk
White o2 disk- black air disk |
6 |
Identification ring
White o2 ring
Black air ring |
7 |
Flow meter filter |
8 |
O-ring for scale cover |
9 |
Complot scale set
9-a scale bottom stopper
9-b scale
9-c scale top stopper |
10 |
Polycarbonate scale cover |
|
|
| |
| NEW ALUMINUM MS FLOW METER |
|
|
- Aluminum body (high shock resistant)
- Flow rate available: 0-15L/min
- Available with French, BS & DIN standard |
 |
|
| 90901902 |
|
|
| |
|
|
 |
|
| 90901902 |
|
| - Available with French, BS and DIN standard |
| |
|
|
|
