Vacuum Regulator |
|
|
|
|
The Purpose of MS Medical vacuum regulator is to measure and adjust the vacuum level. |
|
|
 |
|
|
|
It is used to remove substances from the Patient`s body during Surgical and other procedures the vacuum regulator should be connected to a wall source of vacuum, using a direct probe or through a rail system. |
-
Available for several vacuum levels: 0-1000, 0-600 and 0-250 mbar. |
-
Vacuum gauge filled with a protective hamper device. |
- ON/Off Knob allowing for the quick restoration of a readjusted vacuum level. |
- Central adjustment knob. |

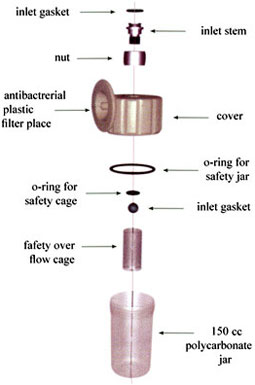

- Polycarbonate 150 CC safety jar, Autoclavable at 121°c & 134°c, unbreakable and fitted with an anti cover flow safety device. |
| |
 |
| |

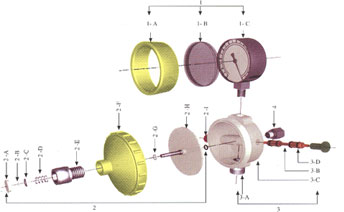

| Vacuum Regulator - Technical View: |
|
1- Vacuum gauge with Bumper:
1-A bumper for vacuum gauge.
1-B lens for vacuum gauge.
1-C Vacuum gauge.
2- Complete cover set:
2-A Plastic disk
2-B Membrane circlips
2-C Brass disher
2-D Spring
2-E Vacuum Knob for cover
2-F Cover
2-G Needle O-ring
2-H Complete membrane
2-H Circlips for adjusting nut
3- Body:
2-A Vacuum regulator outlet
2-B Push button switch with O-ring
2-C The main Body
2-D O-ring for push button
4- Inlet connector |
|
 |
|
|
| NEW MS MEDICAL VACUUM REGULATOR |
|
|
 |
- Available for several vacuum levels: 0-1000, 0-600 and 0-250 mbar. |
|
- ON/Off Knob allowing for the quick restoration of a readjusted vacuum level. |
|
- Central adjustment knob. |
| |
|
|
|
|
|
| NEW MS MEDICAL DOUBLE VACUUM REGULATOR |
|
|
 |
|
| 90901908 |
|
|
 |
|
| 90901909 |
|
|
| |
|
