Second Stage Regulator |
|
|
|
| |
MS Medical Second stage Regulator has been specially design for decreasing pressure until the normal working pressure in the hospital. |
|
 |

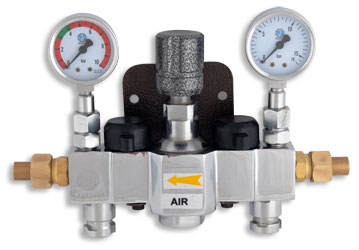

| 90901900 |
|
|
|
| |
Second stage Regulator can work As V.S.P valve in emergency case because It can contact directly With gas cylinder. |
So the second stage regulator can work instead central station in case of emergency. |
| |
Specifications: |
|
1- Manufactured from brass plated with nickel Krum. |
2- Decreasing pressure from 12 bars to 600m bar. |
3- Inlet pressure gauge (from 0 to 16 bars). |
4- Outlet pressure gauge (from 0 to 10 bar). |
5- Tow emergency valve (able to contact with cylinder). |
6- (Open – close) inlet pressure valve. |
7- (Open – close) outlet pressure valve. |
8- Measure valve for the wanted pressure. |
9- Fixing plate. |
| |
|
|
|
|
| 90901900 - O2 |
Oxygen Regulator |
| 90901900 - N2O |
Nitrous Oxide Regulator |
| 90901900 - AIR |
Air Regulator |
| 90901900 - CO2 |
Co2 Regulator |
| 90901900 - Nitrogen |
Nitrogen Regulator |
| 90901900 - Argon |
Argon Regulator |
|

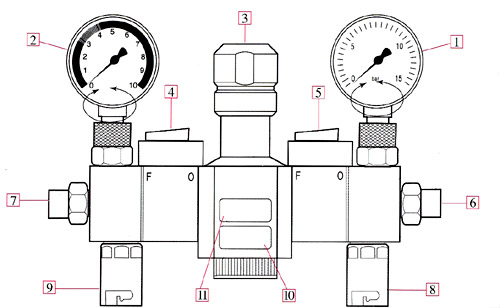

1 |
Inlet gauge |
| 2 |
Outlet gauge |
| 3 |
Measuring valve |
| 4 |
(Open – close) valve |
| 5 |
(Open – close) valve |
| 6 |
Inlet connector |
| 7 |
Outlet connector |
| 8 |
Outlet Emergency valve |
| 9 |
Inlet Emergency valve |
| 10 |
Gas flow direction |
| 11 |
Gas Kind |
|
|
| |
|
