Product |
|
|
|
|
|
|
|

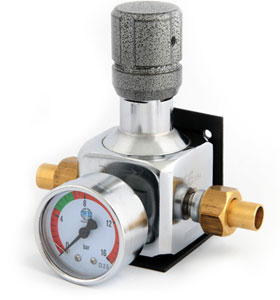

103 Pressure regulator |
|
|
1- Manufacactured from brass with the ability of decreasing the inlet pressure from 12 bar to
600m bar |
| 2- outlet pressure gauge ( From 0 to 16 bar ) |
| 3- Fixed plate |
| 4- Valve for measuring the wanted Outlet pressure. |
| |
| 103-1 |
Oxygen regulator |
| 103-6 |
Nitrous oxide regulator |
| 103-5 |
Air regulator |
| 103-4 |
Co2 regulator |
| 103-3 |
Nitrogen regulator |
| 103-2 |
Argon regulator |
|
|
| |
1 |
Regulator Body |
2 |
Gauge place |
3 |
Connection nut |
4 |
Connection nibble |
5 |
O-ring |
6 |
Spring |
7 |
Plate |
8 |
Body Screw |
9 |
High Body for regulator |
10 |
Pressure valve |
11 |
Pressure valve screw |
12 |
Pressure measuring valve |
|
|
|
| |
|
|
|
